High Power PWM & Pulse Generator Frequency Duty Cycle Adjustable Driver NEW

¥4,099
配送料無料

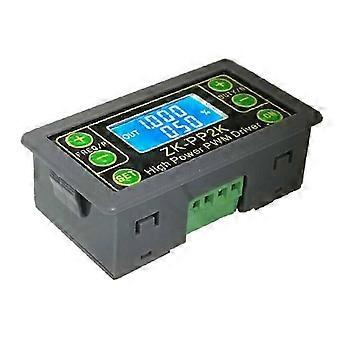

High Power PWM & Pulse Generator Frequency Duty Cycle Adjustable Driver NEW

  • ブランド: Unbranded

High Power PWM & Pulse Generator Frequency Duty Cycle Adjustable Driver NEW

  • ブランド: Unbranded
価格: ¥4,099
販売元:
¥4,099
配送料無料

在庫あり

以下の支払い方法を利用することができます

説明

Specification: Working Voltage: 3.3~30V (note that the positive and negative poles should not be reversed, otherwise it may burn) Frequency range1Hz~150KHz, accuracy about 2%. Motor speed control generally choose 20KHz Duty Range: 0-100%, 1% step Number of pulses1-9999, or infinity (display "----" represents infinity) Delayed exit time0.000s-9999s, limit can be set to 1ms Positive and negative pulse width]: 0.000s-9999s, limit small adjustable to 1ms Output capacity: less than 8A (MOS switching tube) Output amplitudeamplitude and supply voltage same (OUT+ and V+ module internally directly connected) Product Size79*43*30mm Product Weight42g Characteristic: 1. Direct drive for ED, motor, solenoid valve and other loads 2. Two modes can be selected. PWM mode one - frequency (continuous), duty cycle. Note that the number of switches cannot be adjusted in this mode, it turns on and off constantly; PULSE pulse mode - positive pulse width time, negative pulse width time, on-delay start time, adjustable number of switches 3. With start-stop button to control start and stop 4. Wide voltage input 3.3-30V, 5.08mm terminal wiring The package includes: 1*High Performance ZK-PP2K PWM & Pulse Generator Frequency Duty Cycle Adjustable Driver
  • ブランド: Unbranded
  • カテゴリー: 発電機
  • Fruugo ID: 372856051-807517804
  • EAN: 5765940993243

製品安全情報

以下に概説するこの製品に固有の製品安全性情報を参照してください。

以下の情報は、この製品を販売する独立したサードパーティ小売業者によって提供されています。

製品安全ラベル

CE Mark
安全上の警告: Do not let your children touch this product alone to avoid swallowing or other injuries.
