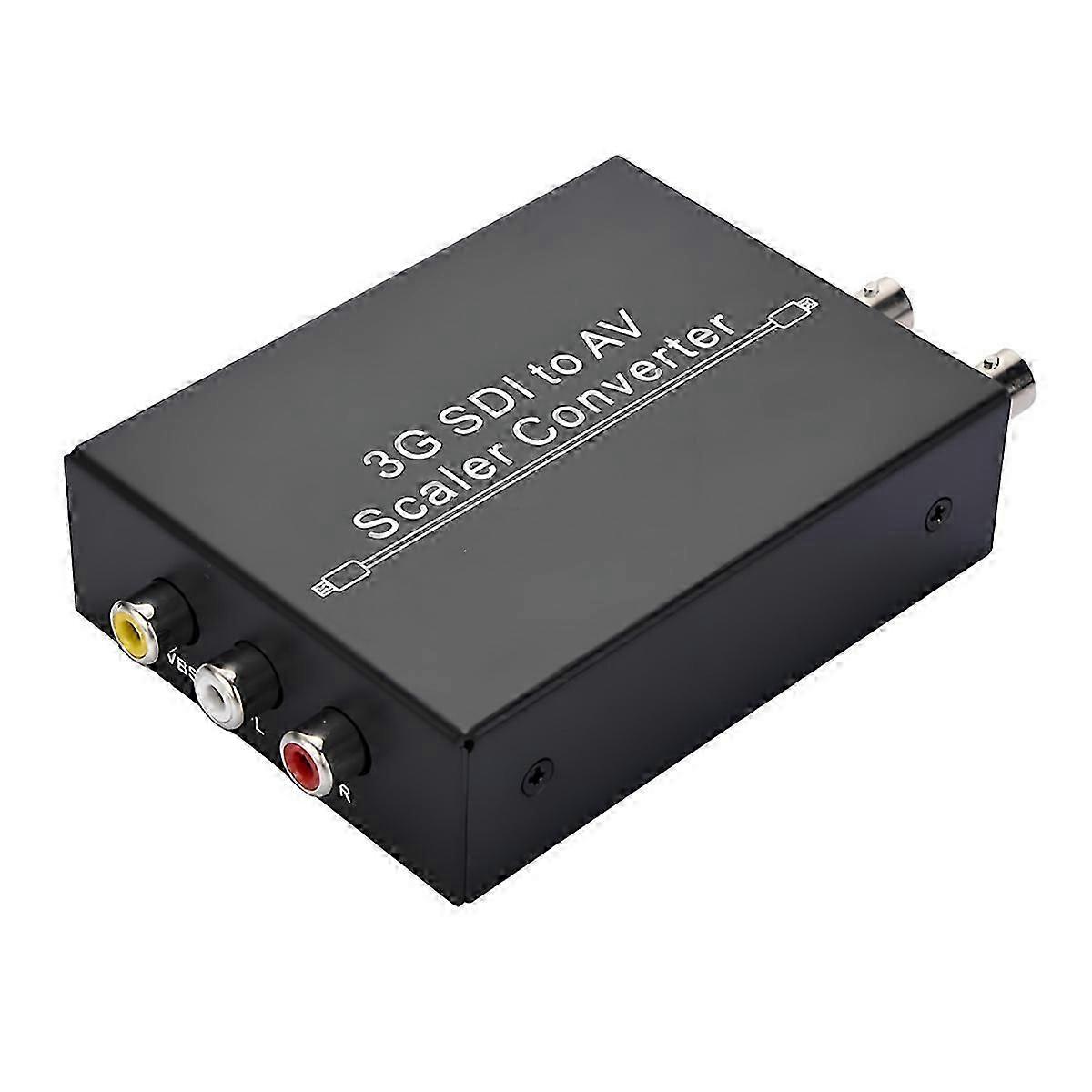

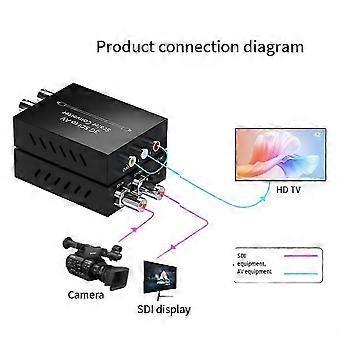

Mini 3G SDI to AV converter, allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on CRT or HDTV displays to give you fast signal transmission without any loss. Equalized and re-clocked loop output, simultaneous display SDI and AV signals. Operation at 2.970Gbit/s, 1.485Gbit/s and 270Mbits/s. Auto video mode detection (3G/HD/SD). Alternative audio output to analog 2CH. Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit. Connect with other units to extend your signal over long distances, up to 300 meters for SD signals, 200 meters for HD signals and 100 meters for 3G signals. Note: Cable tested with 1694A. Operating distances if used with another type of cable. SMPTE Standard: 425M Level A & B, 424M/292M/259M-C Input Port: 1 * BNC(SDI/HD-SDI/3G-SDI) Output Port: 1 * BNC (SD/HD/3G-SDI), 3 * (CVBS, L/R) SDI Transmission Rates: 2.970 Gbit/s and 2.970/1.001 Gbit/s SDI In/Output Resolution: SD: 480i@60, 576i@50 HD: 720p@50/60 1080i@50/60 3G: 1080p@24/25/29.97/30/50/59.94/60 CVBS Output Resolution: PAL/NTSC-M Power Supply: DC 5V~12V Power Consumption: Max. 5W ESD Protection Human Body Model: 8kV (air- discharge), 4kV (contact discharge) Item Size: . 11.5 x 6.5 x 2.5cm / 4.5 x 2.6 x 1in Item Weight: . 207g / 7.3oz Plug Type:US Plug,it applies to Canada, India,Mexico, Thailand, the , the Philippines,Taiwan and so on. Voltage:AC100-240V Color: Black Material: Metal Package Contents: 1 * 3G SDI to AV Converter 1 * Power Plug 1 * Operation Manual (English) Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
