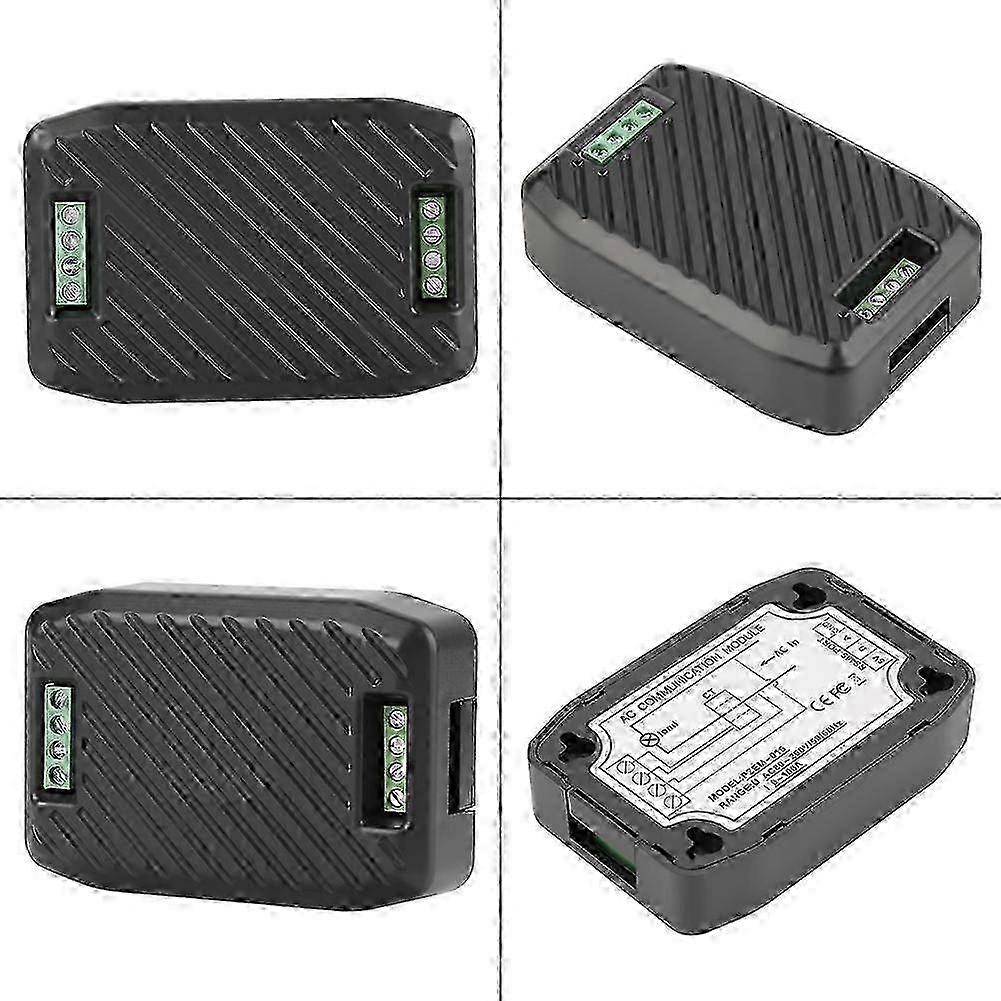

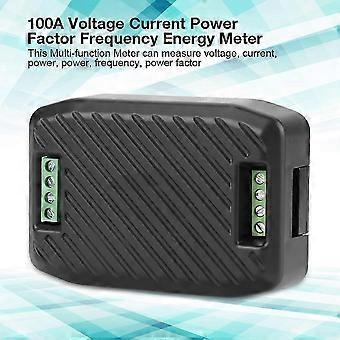

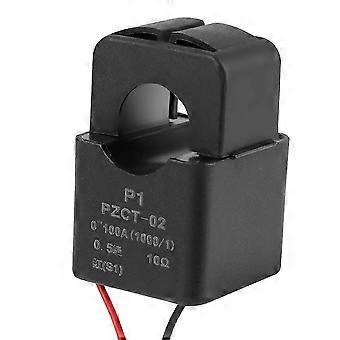

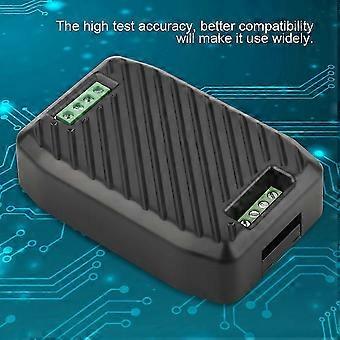

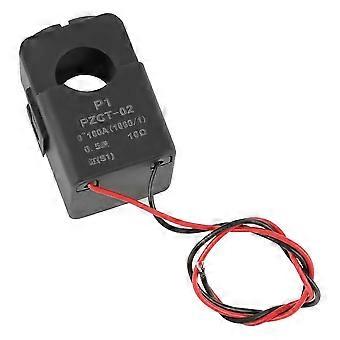

Features: The physical layer adopts UART to RS485 communication interface, with baud rate of 9,600, 8-bit data bits, 1-bit stop bits and no verification This Multi-function Meter can measure voltage, current, power, power, frequency, power factor Over power alarm: Active power threshold can be set, when the measured active power exceeds the threshold, it can alarm It can display six measurement parameters on the computer when communicate through the software The high test accuracy, better compatibility will make it use widely. Specifications: Brand: PEACEFAIR Model: PZEM-016 Type(Optional): Type1: 1xMeterand1x Closed type CT Type2: 1xMeterand 1xopen type CT Type3: 1xMeterand 1xClosed type CTand 1xUSB to 485 Type4: 1xMeterand 1xopen type CTand 1xUSB to 485 Voltage Measuring range:80-260V Resolution: 0.1V Measurement accuracy: 0.5 percent Current Measuring range: 0-100A Starting measure current: 0.02A Resolution: 0.001A Measurement accuracy: 0.5 percent Active power Measuring range: 0-23kW Starting measure power: 0.4W Resolution: 0.1W Display format: When the data is ＜1000W, it display one decimal, such as: 999.9W When the data is ≥1000W, it display only integer, such as: 1000W Measurement accuracy: 0.5 percent Power factor Measuring range: 0.00-1.00 Resolution: 0.01 Measurement accuracy: 1 percent Frequency Measuring range: 45Hz-65Hz Resolution: 0.1Hz Measurement accuracy: 0.5 percent Active energy Measuring range: 0-9999.99kWh Resolution: 1Wh Measurement accuracy: 0.5 percent Display format: When the data is ＜10kWh, the display unit is Wh(1kWh=1000Wh), such as: 9999Wh When the data is ≥10kWh, the display unit is kWh, such as: 9999.99kWh Reset energy: use software to reset. Communication interface: RS485 interface Size:90 x 60.5mm or 3.54 x 2.38in Weight: Approx.118-154g Package includes: Type1,Type2,Type3,Type4 (Optional) Type1: 1xMeterand1x Closed type CT Type2: 1xMeterand 1xopen type CT Type3: 1xMeterand 1xClosed type CTand 1xUSB to 485 Type4: 1xMeterand 1xopen type CTand 1xUSB to 485 1,The physical layer adopts UART to RS485 communication interface, with baud rate of 9,600, 8-bit data bits, 1-bit stop bits and no verification 2,This Multi-function Meter can measure voltage, current, power, power, frequency, power factor 3,Over power alarm: Active power threshold can be set, when the measured active power exceeds the threshold, it can alarm 4, It can display six measurement parameters on the computer when communicate through the software 5,The high test accuracy, better compatibility will make it use widely.
