Features
1、This product is a DC gear motor with high precision metal gear, stable working 2、This DC motor features large moment of force, low speed, and low noise. 3、The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life. 4、This motor is adopted of pure copper wire coil, with low heat and low loss. 5、Widely used in electronic lock, robot, electric curtain, electric door, micro mixer, monitoring equipment, pet feeding machine
Specification
Features:
This product is a DC gear motor with high precision metal gear, stable working
This DC motor features large moment of force, low speed, and low noise.
The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life.
This motor is adopted of pure copper wire coil, with low heat and low loss.
Widely used in electronic lock, robot, electric curtain, electric door, micro mixer, monitoring equipment, pet feeding machine
Specification:

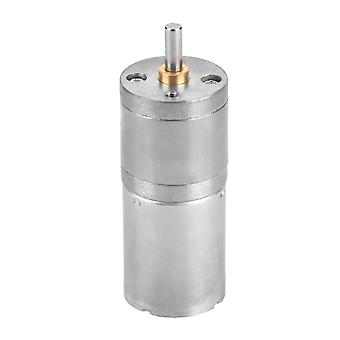

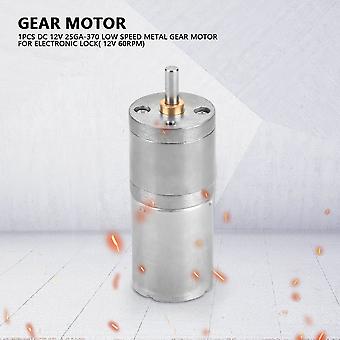

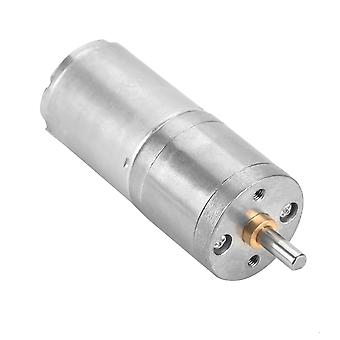

Model: GA25YN370
Rated power: 3.5 (W)
Product type: Brush dc motor
Rated voltage: 5-12 (V)
Rated current: 0.06 (A)
Type(Optional): 12V 5RPM, 12V 10RPM, 12V 30RPM, 12V 60RPM, 12V 100RPM, 12V 200RPM, 12V 300RPM, 12V 400RPM, 12V 500RPM, 12V 1000RPM
Outer diameter: 25 mm/1.0in
Shaft diameter: 4mm / 0.2in
Shaft length: 10 mm/0.4in
Weight: 96g/3.4oz
Voltage Gear ratio no load load Stall
speed Current speed Current toqure Current toqure
12V 1:650 5RPM ≤150MA 3RPM ≤70MA 1150gf.cm ≤2.1A 15.4kgf.cm
12V 1:150 10RPM ≤170MA 7RPM ≤100MA 980gf.cm ≤2.1A 14.8kgf.cm
12V 1:150 30RPM ≤170MA 25RPM ≤100MA 770gf.cm ≤2.1A 12.0kgf.cm
12V 1:200 60RPM ≤170MA 51RPM ≤100MA 750gf.cm ≤2.1A 11.8kgf.cm
12V 1:100 100RPM ≤150MA 73RPM ≤185MA 660gf.cm ≤2.1A 10.5kgf.cm
12V 1:50 200RPM ≤180MA 165RPM ≤105MA 580gf.cm ≤2.1A 8.8kgf.cm
12V 1:30 300RPM ≤190MA 254RPM ≤145MA 180gf.cm ≤2.1A 7.8kgf.cm
12V 1:25 400RPM ≤190MA 344RPM ≤145MA 170gf.cm ≤2.1A 7.7kgf.cm
12V 1:20 500RPM ≤190MA 460RPM ≤145MA 150gf.cm ≤2.1A 7.5kgf.cm
12V 1:10 1000RPM ≤190MA 820RPM ≤145MA 88gf.cm ≤2.1A 7.2kgf.cm
Package list:
1 x gear motor
Package List
-
Fruugo ID:
271671572-602233286
-
EAN:
9308869156960
製品安全情報
以下に概説するこの製品に固有の製品安全性情報を参照してください。
以下の情報は、この製品を販売する独立したサードパーティ小売業者によって提供されています。
製品安全ラベル
安全上の警告:
Please do not allow your child to handle this product alone to avoid swallowing or other injuries; adult supervision is recommended.
