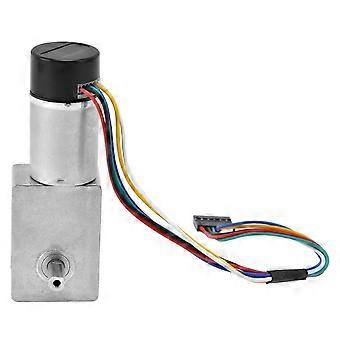

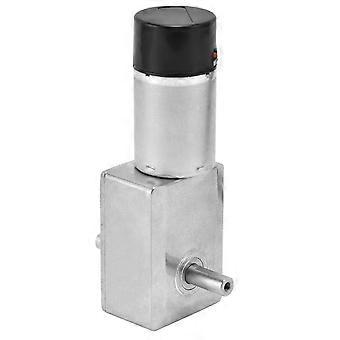

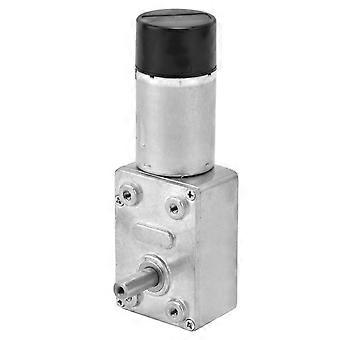

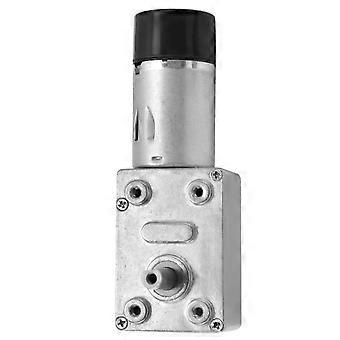

DC Worm Gear Motor 15mm Double Shaft Speed Reduction Drive Device JGY370 DC 12V 150RPM Features 1.The DC worm gear motor has D type double shaft, with high hardness, good stability and excellent thermal conductivity. 2.The gear box is made of all metal materials, which is resistant to wear and rust, which can extend the service life of the motor 3.The encoder is coated with 3 layers of high density molecular paint to effectively isolate dust and greatly extend the service life. 4.The copper coil has super electrical conductivity, which makes the power output of the motor smoother. 5.Widely used in household appliances, office equipment, automotive automatic facilities, intelligent systems, automation control, and other industrial drive devices, etc. Specification Item Type: DC Worm Gear Motor Material: Zinc alloy, copper Purpose: Industrial drive device Output Shaft Diameter: Approx. 6mm / 0.2in Output Shaft Length: Approx. 15mm / 0.6in Shaft Type: D type Speed Adjustment: Adjustable Direction: CW and CCW Cable Length: Approx. 230mm / 9.1in DC 6V Parameter: Reduction Ratio(Change Ratio) 40 65 90 150 200 260 340 600 1000 No Load Current MA 100 100 100 100 100 100 100 100 100 No Load Speed rpm 150 90 66 40 30 23 18 10 6 Rated Torsion Kg.cm 0.2 0.5 0.7 2 5.3 6.7 9 15.9 26.5 Rated Speed rpm 120 70 51 30 22 18 15 7.5 4 Rated Current A 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 Maximum Torsion Kg.cm 0.9 1.6 2 7.5 10 13 18 30 45 Stall Current A 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 DC 12V Parameter: Reduction Ratio(Change Ratio) 40 65 90 150 200 260 340 600 1000 No Load Current MA 60 60 60 60 60 60 60 60 60 No Load Speed rpm 150 90 66 40 30 23 18 10 6 Rated Torsion Kg.cm 0.2 0.5 0.7 2 5.3 6.7 9 15.9 26.5 Rated Speed rpm 120 70 51 30 22 18 15 7.5 4 Rated Current A 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 Maximum Torsion Kg.cm 0.9 1.6 2 7.5 10 13 18 30 45 Stall Current A 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 Package List 1 x Gear Motor
