2025 Boost Buck Power Supply Module LCD Display Solar 300W Automatic Buck Boost Module for Charging

¥9,590
+ 配送料¥1,099

2025 Boost Buck Power Supply Module LCD Display Solar 300W Automatic Buck Boost Module for Charging

  • ブランド: Unbranded

2025 Boost Buck Power Supply Module LCD Display Solar 300W Automatic Buck Boost Module for Charging

  • ブランド: Unbranded
希望小売価格: ¥19,090
価格: ¥9,590
得する金額: ¥9,500 (49%)
販売元:
¥9,590
+ 配送料¥1,099

在庫あり

以下の支払い方法を利用することができます

説明

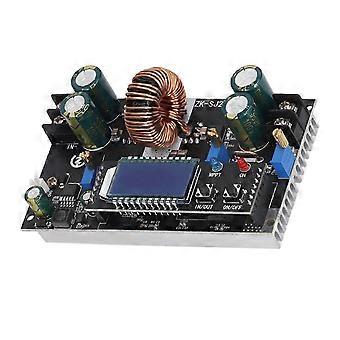

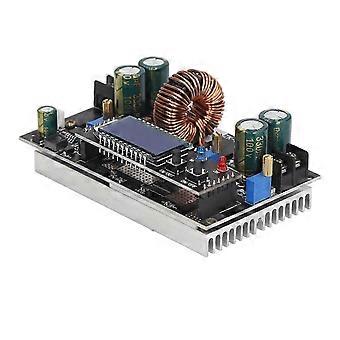

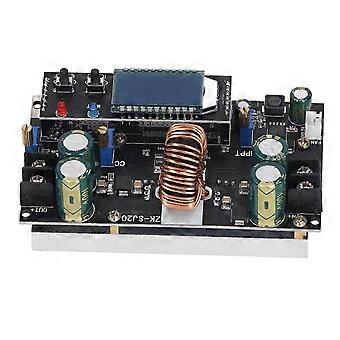

Item Type: Boost Buck Power Supply ModuleMaterial: Aluminum alloy, PCBInput Voltage Range: DC7-80VOutput Voltage Range: DC1.4-79VVoltage Display Range: 1.40-80.00V (accuracy 0.1V or so)Output Current Adjustment Range: 0-20ACurrent Display Range: 0.00A-20.00A (Accuracy 0.03A or so)Adjustment Knob: MPPT voltage adjustment, output voltage adjustment, output current limit adjustmentMPPT Function: YesBackflow Prevention Function: Yes, connect the battery without string diodeConstant Current (current limiting): YesLCD Display: YesOver Power Protection: 300W, beyond the power will shut down the output, display OPPProduct Size: Approx. 108 x 64 x 48mm / 4.3 x 2.5 x 1.9inApplications: Solar charging, battery charging of lithium batteries, LED constant current drive, voltage regulatorCharging: Connect the battery for charging (be careful not to connect the negative terminal anyway). MPPT can be properly adjusted potentiometer so that the module is always at maximum power point output. It is recommended to connect diodes to completely prevent backflow. .wang-edit-text{ font-family:'Arial' !important; } .wang-edit-text table { border-top: 1px solid #000; border-left: 1px solid #000; } .wang-edit-text table td, .wang-edit-text table th { border-bottom: 1px solid #000; border-right: 1px solid #000; padding: 3px 5px; } .wang-edit-text table th { text-align: center; } 1Fast Heat Dissipation: The chip inside the auto lift module strengthens heat dissipation, reliable and stable, and high power. 2Adjustable: Automatic lifting module all use screwdriver free potentiometer, can be directly manually adjusted, very convenient. 3Aluminum Alloy Material: The metal part of the automatic lifting pressure module is made of aluminum alloy, which has good hardness and also good rust resistance. 4Real Time Display: The MPPT regulation voltage of the auto-lift module is displayed in real time on the LCD screen at a glance. 5Wide Application: Auto boost module is used in a wide range of applications, solar charging, battery lithium charging, LED constant current driver, voltage regulator. Note: Due to the light and screen setting difference, the item's color may be slightly different from the pictures. Please allow slight dimension difference due to different manual measurement. Sold by-YJL official store
  • Fruugo ID: 396928573-847062867
  • EAN: 6940612059031

製品安全情報

以下に概説するこの製品に固有の製品安全性情報を参照してください。

以下の情報は、この製品を販売する独立したサードパーティ小売業者によって提供されています。

製品安全ラベル

CE Mark
安全上の警告: Not suitable for children under 36 months
材料: Plastic 5%
