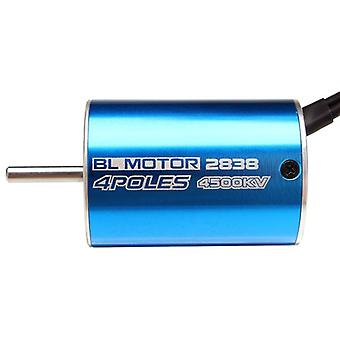

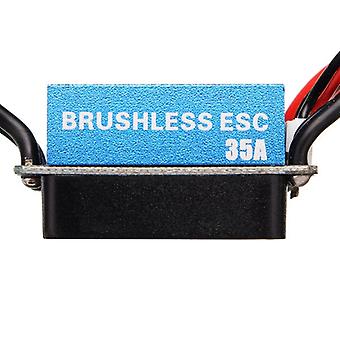

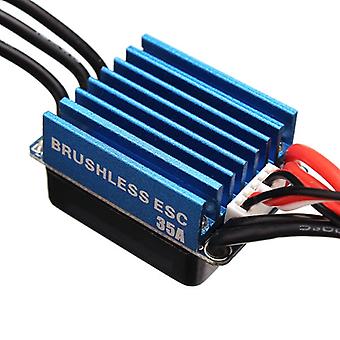

2838 Sensorless Waterproof Motor 3600/4500KV 35A ESC For 1/12 1/14 Cars Products Name: Description: Motor Features: - 4 pole 12 slot hi-torque motor design - CNC machined 6061 T6 billet aluminum heatsink can - High purity copper windings maximizes efficiency - High RPM ABEC 5 oversized bearings - Universal fit, fits all 1/12, 1/14, 1/16, 1/18 brushless cars; multi-mounting system for M2.5 screws - Precision balanced rotor, smoothness for best reliability and maxium RPM Motor Specification: Product Watts Max Voltage Max Amps Rotor Poles IO Resistance KV (RPM/Volt6) Max RPM Length Diameters Weight (g) Shaft (mm) Length of Extend Shaft Connector 2838 600 12V 50A 4 1.8A 0.0285 4500 50000 38mm 28mm 95 ￠3.175 15mm 3.5mm gold 2838 600 14V 43A 4 1.4A 0.0415 3600 50000 38mm 28mm 95 ￠3.175 15mm 3.5mm gold ESC Features: - Specially desighed for RC car with excellent start-up, acceleration and linearity feartures - Compatible with sensorless brushless motor - The strong resistant current capability, excellent heat dissipation - Multiple protection features: low voltage cut-off protection for lithium or nickel battery / over-heat protection / throtttle signal loss protection / motor blocked protection - Easily programmed and compatible with pocket-sized program card ESC Specifications: Model 35A Cont. Current/Burst Current 35A/120A Motor Type Sensorless Brushless Motor Suitable Car 1/18, 1/16, 1/14, 1/12 Suitable Brushless Motor ≥12T Resistance 0.003ohm Battery 2-3 cells Lipo 4-9 cells NiMH BEC Output 5V/2A (analog mode) Dimension 25*30*18.5mm Package Included: 1 X Motor 1 X ESC 1 X Instruction
