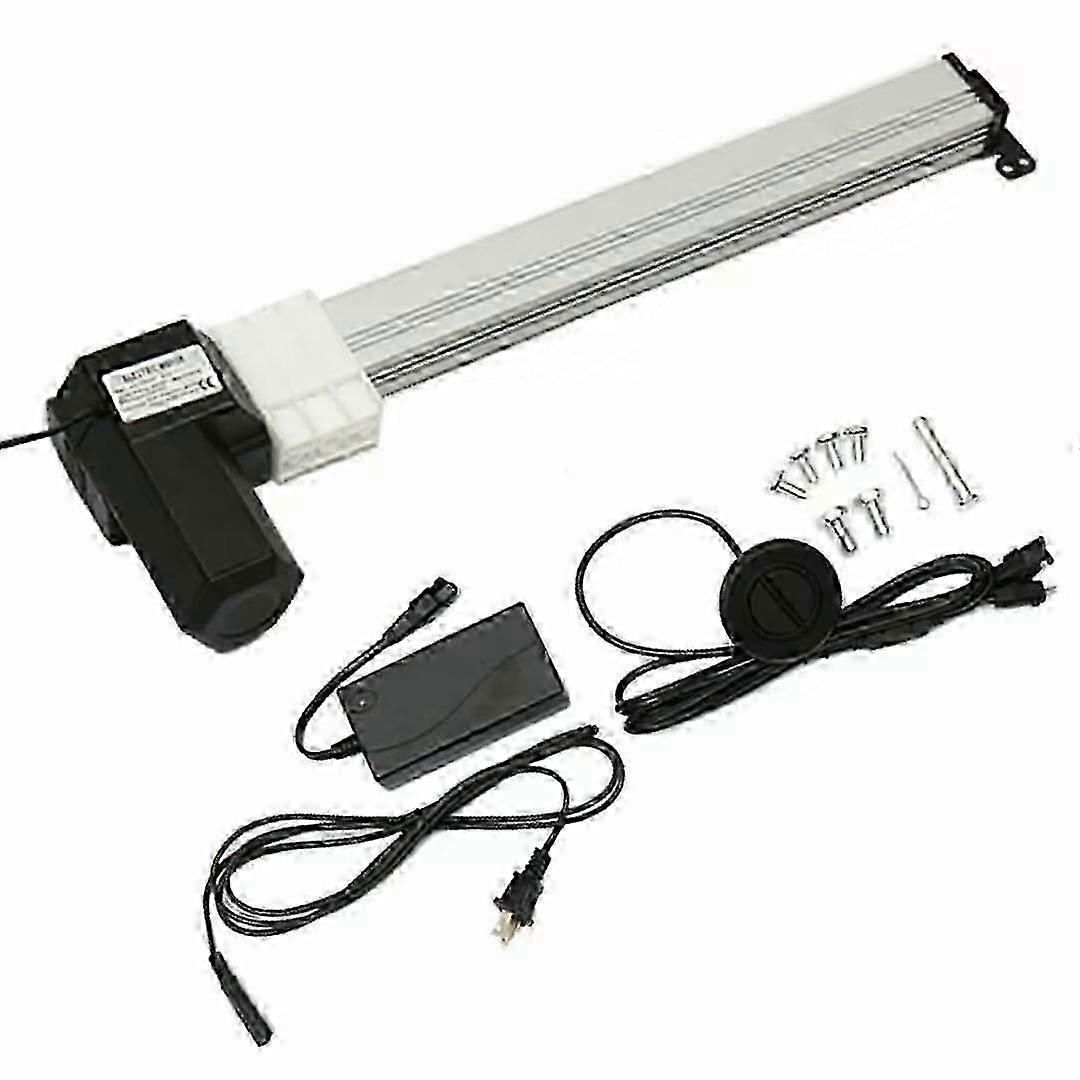

Specifications: Product: Power recliner motor actuator Stroke length: 330mm Total dimensions: 530mm Permanent magnet DC motor drive; Voltage: 24VDC Maximum push / pull: 600KG / 3000N Speed: maximum 5mm / S Ambient temperature: -5 C + + 50 C Standard protection level: IP44 Features: 24VDC permanent magnet motor Thrust up to 6000 N in push.and up to 6000 N in pull. Elegant and compact design with small installation dimensions Built-in limit switches (not adjustable) Steel back fixture Standard protection class, IP44 Noise level 48 dB (A), actuator not loaded. Duty cycle, Max 10% or 2 minutes continuous use followed by 18 minutes not in use. Application: This power recliner lift chair linear actuator motor will open and close the lift mechanism of power recliner or lift chair. Connects to motor handset hand control via 5 pin style connector, and connects to the power transformer via the standard 2 pin style connector. Packages: 1 x push rod motor 1 x switching power supply 1 x power cord 1 x wired manual controller 1 x cotter pin 1 x pin 2 x external hexagon 10 * 20 screw 4 x flat head screw 8 * 16
