説明

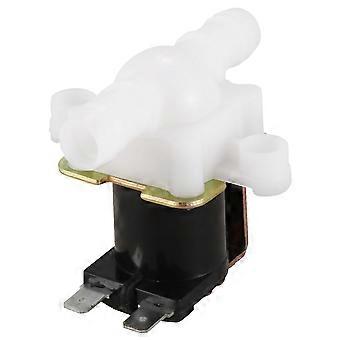

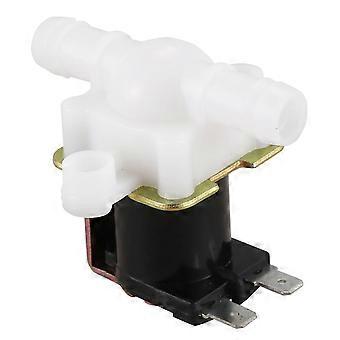

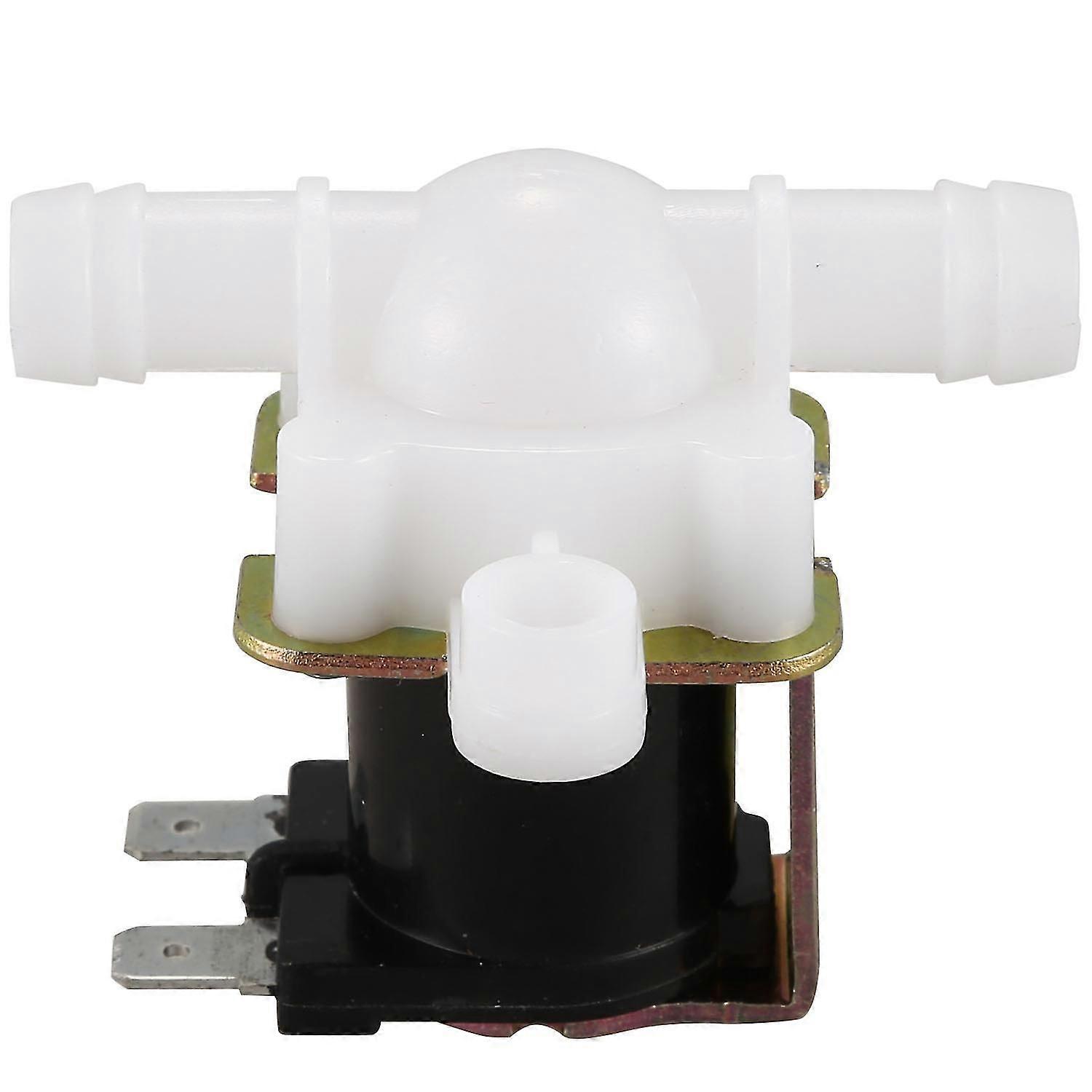

These 12-Volt DC electric solenoid valves with barbed inlet and outlet ports are great for projects. A model: These types of valves are often used for automatic faucets, foot operated faucets, drinking fountains etc.
NOTE A model: Please note that diaphragm-type solenoid valves are NOT suitable for gravity-fed systems (. draining liquids out of containers or tanks without using a pump) because of the 3 psi minimum pressure requirement. Check our other auctions for direct acting valves which are suitable for gravity-fed systems. B model: This routine for no pressure valve, apply to 0-0.2 MPA water pressure, used in ordinary water machine!
Water flow characteristic: 0.02 Mpa 0.4 L/min; 0.10 Mpa 1.5 L/min; 0.30 Mpa 3.5 L/min; 0.80 Mpa 6 L/mi. This valve is normally closed type solenoid valve, the electricity on (water), power off(no water), in the direction of flow is towards the direction (reverse connect does not work)
As its name suggests,pressure is the water pressure,No pressure that is no water pressure.Pressure applied to 0.02 ~ 0.8Mpa water pressure,no pressure applied to 0 ~ 0.2Mpa water pressure.Solenoid valve that not using within the range of normal pressure can not work normally.
colour:white & black
material:metal & Plastic
size: 63*55mm
type:no Pressure
Voltage: 12-Volt DC
Current: 450 mA
Operation Mode: Normally Closed (Valve opens when energized)
Valve Type: Diaphragm Valve (Servo operated)
Inlet/Outlet Ports: Hose barbs for 3/8inch ID hose (ID = inside diameter)
Pressure Rating:
--A model: 3-140 psi(0.028Mpa)
Suitable Media: Water, Very Low Viscosity Fluids
Temperature Limitations: Maximum Fluid Temperature 195 Fahrenheit
Valve Response Time: Fast Acting
Filter Screen: Stainless Steel Inlet Filter
Spring: Stainless Steel ( 316)
Plunger: Stainless Steel ( 430)
Plunger Tip: Silicon Rubber
Diaphragm: Nitrile Butadiene Rubber (NBR)
Diaphragm Plate: Polyoxymethylene (POM)
Mounting Screws: 3 mm (not included)
Mounting Position: Any
Estimated Valve Life: More than 300,000-500,000 Cycles
packaging details:
1*Electric Solenoid Valve
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
-
ブランド:
Unbranded
-
カテゴリー:
配管バルブ
-
色:
white black
-
Fruugo ID:
282056388-627466459
-
EAN:
9476117926358
製品安全情報
以下に概説するこの製品に固有の製品安全性情報を参照してください。
以下の情報は、この製品を販売する独立したサードパーティ小売業者によって提供されています。
製品安全ラベル
安全上の警告:
WARNING! TO AVOTD DANGER OF SUFFOCATION,KEEP AWAY FROM
材料:
Plastic 6.3%
メーカー型番:
WK112165
モデル番号:
WK325698
シリアルナンバー:
WK420129
バッチ番号:
WK214587
