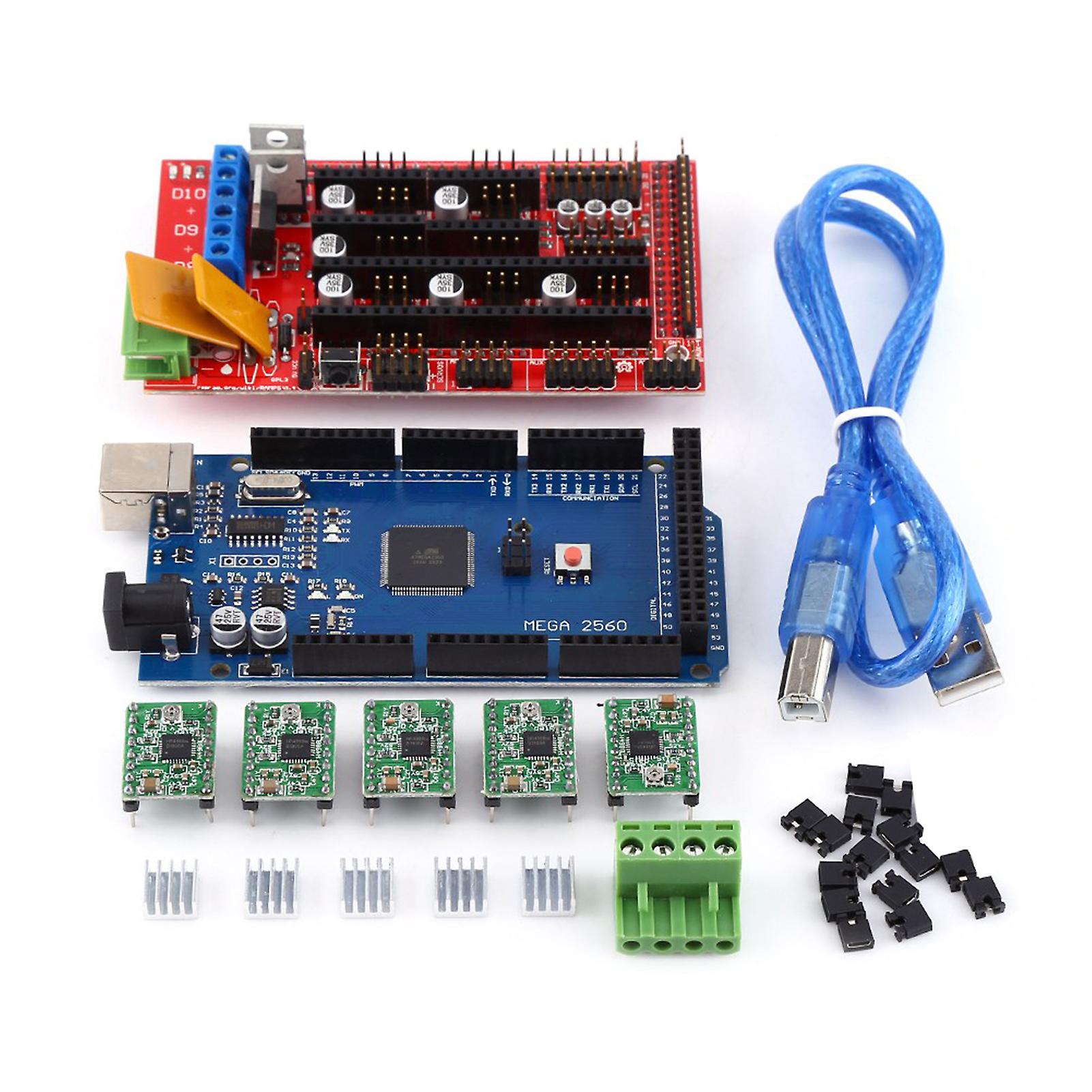

3D Printer RAMPS 1.4 Controller Board for R3 + A4988 With Heat Sink USB Calbe Jumper Kit

¥6,290
配送料無料

3D Printer RAMPS 1.4 Controller Board for R3 + A4988 With Heat Sink USB Calbe Jumper Kit

  • ブランド: Unbranded

3D Printer RAMPS 1.4 Controller Board for R3 + A4988 With Heat Sink USB Calbe Jumper Kit

  • ブランド: Unbranded
希望小売価格: ¥8,190
価格: ¥6,290
得する金額: ¥1,900 (23%)
販売元:
(プレミアムセラー)
¥6,290
配送料無料

在庫あり

14日間返品ポリシー

支払い方法:

説明

3D Printer RAMPS 1.4 Controller Board for R3 + A4988 With Heat Sink USB Calbe Jumper Kit

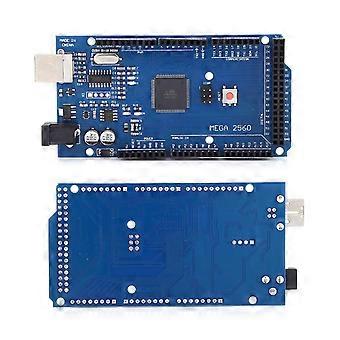

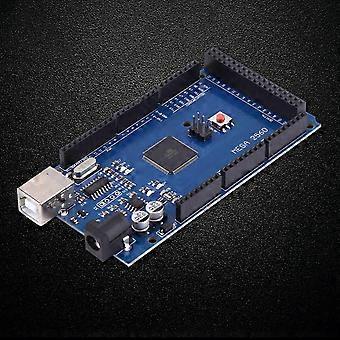

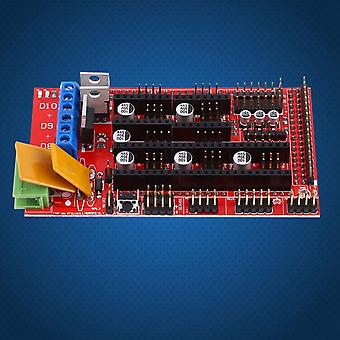

Features: The RAMPS 1.4 board is designed to fit the entire electronics needed for a RepRap in one small package for low cost. RAMPS interfaces an Mega with the powerful MEGA platform and has plenty room for expansion. Additionally, a number of expansion boards can be added to the system as long as the main RAMPS board is kept to the top of the stack. Mega is a micro-controller development board itself has 54 groups digital I / O input / output terminal (14 groups do PWM outputs), 16 sets of simulation than the input side, group 4 UARTs (hardware serial ports), using the 16 MHz crystal oscillator. With the boot-loader, download the program directly via USB without having to go through other external writer. Development IDE interface is based on open-source principles, allows you to free download for use in project work, school teaching, motor control, interactive works. A4988 driver is a carrier board or breakout board for Allegro's A4988 DMOS micro-stepping driver with translator and Over current Protection by Pololu; This stepper motor driver lets you control one bipolar stepper motor at up to 2 A output current per coil. Specifications: RAMPS 1.4 Size: 9.1 x 5.9cm / 3.58 x 2.32" Board for R3 Size: 10.8 x 5.5cm / 4.25 x 2.16" A4988 Color: Green A4988 Quantity: 5pcs Package Includes: 1 x RAMPS 1.4 Board 1 x Board for R3 5 x Soldered A4988 Drivers 5 x Heat Sinks 1 x USB Cable 15 x Jumpers .
  • Fruugo ID: 379379595-818903938
  • EAN: 7590917156059

製品安全情報

以下に概説するこの製品に固有の製品安全性情報を参照してください。

以下の情報は、この製品を販売する独立したサードパーティ小売業者によって提供されています。

製品安全ラベル

CE Mark
安全上の警告: Warning: Please read the product instructions carefully before use to ensure correct use.
シリアルナンバー: 7590917156059
