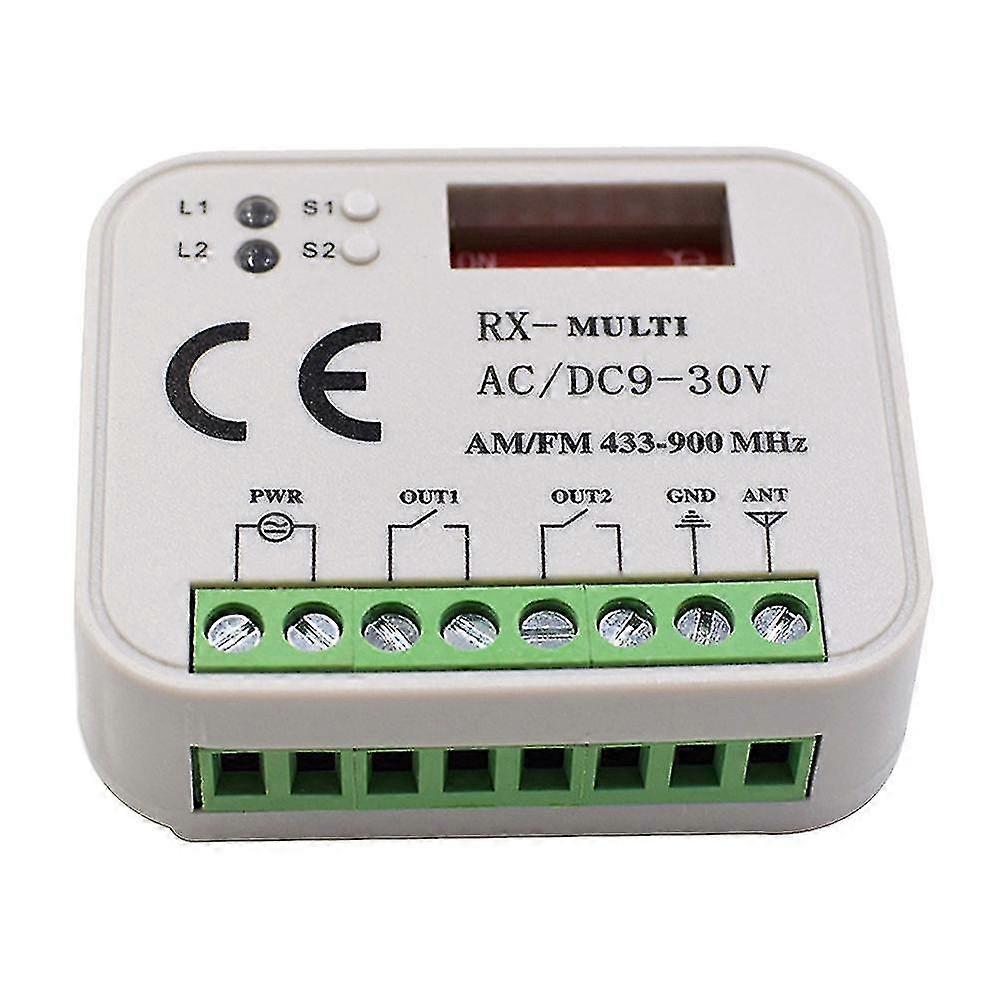

1) Select the correct brand for remote to be programmed by moving dip switches UP or DOWN. For example 433,92Mhz Marantec remote controls, just move Dip-switch 7 UP.2) Press the learn button. The will LED turn on.3) Press the button on the remote, the LED flashes 4 times. It means that remote control was programmed successfully.4) Repeat step 2 for another button.5)The 2-nd channel programming procedure is the same. Erase all data from the memory card: Press and hold either learn button. The LED will start flash. Keep this button pressed, until the LED will turn off. All saved data in the memory card will be erased permanently and can not be recoveredcolor: WhiteMaterial: ABS1)Name: Universal receiver SMG-662.2)Operating Voltage: 9V-30V3)Channel: 2.4)Frequency: 300MHz - 900MHz.5) Distance: 30-50 meters.6) Very mini size: 5.5cm x 4.5cm x 1.0cm.7) One receiver can work with 400 codes.8) It don& 39;t interference other remotes and receivers.9) Brand selector: With 8 dip switches user can make different combination for different remote .10)Code: Rolling and Fixed code & Learning code.11)Uses: Receiver is designed to control any gate automation system, burglar alarm system, electric doors, windows, lifting equipment, gateways, lifting devices. This is an easy to use, good looking, low consumption and is easy to connect to your existing system.12) Input Selector: This receiver can work at AC/DC 9V~30V. However, it& 39;s better to change the PIS according to the input. If the input is great than 24V, shorten pin 2&3; shorten 1&2 if input less than 24V.Compatible :All 433.92mhz fixed code remotes. APRIMATIC,ATA,ADYX,ALLMATIC,AVIDSEN, BENINCA,CAME,CARDIN,CHAMBERLIN, Mastercode SEAV 433.92mhz, DOORHAN,DEA,,ERREKA 433.92MHZ, MARANTEC 433.92mhz 868.3mhz, FAC rolling code 433.92mhz and 868mhz, liftmaster 310, 390, 433.92mhz, 315mhz, Hormann and Marantec, Berner 868mhz, Prastel, 433 and 315mhz,VDS, PNC, FORSA, , ROPER 868MHZ,SOMMER 868.8MHZ...Package Contents:1 x ReceiverOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm."
