説明
55 x 21mm DC Female Power Supply Jack charging port Socket 55 * 21 mm Electric Pcb Panel Mount Connector Threaded Metal B4
5.5 x 2.1mm DC Power Supply Jack Socket 5.5 * 2.1 mm Electric Female Pcb Panel Mount Connector Threaded Metal Charging port plug
_x000D_
_x000D_
_x000D_

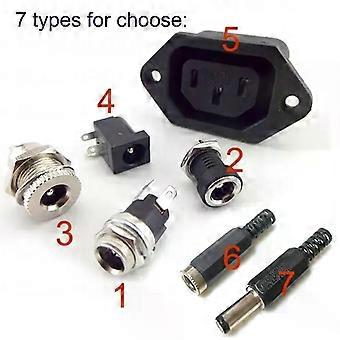

Type 1:
Features:
Contact rating: 30V/0.5A DC
Connector size: 5.5mm x 2.1mm
Product size: 12mm x 12mm x 20mm
Termination method: Solder Lug
_x000D_
_x000D_
_x000D_
1. 5.5x2.1mm DC Power Plug Jack
2. Panel mounting
3. Works with the male plug with inner diameter: 2.1mm, outer diameter: 5.5mm
4. Supplied with washer and hexagonal fixing nut.
Type 2:
Features:
DC in-line power outlet series
Contact resistance 0.05
Insulation resistance 100M
Rated load DC 12V 3A
Plug force 3N ~ 20N
long foot negative - short foot positive +
Electrical life 5000 times
Temperature range -30 ~ +70
type 3 :
Model:DC-099
DC Type:5.5 x 2.1mm
Rated Load :DC 30V 5A
Model:DC-099
DC Type:5.5 x 2.1mm
Rated Load :DC 30V 5A
Mounting Diameter:11mm
Main Material:Brass
type 4 :
Features:
1. 5.5x2.1mm DC Power Plug Jack
2. Panel mounting
3. Works with the male plug with inner diameter: 2.1mm, outer diameter: 5.5mm
type 5 :
3 pin power
Product Name: Power Inlet Socket;
Power Supply: AC 250V 5A;
Plug Type: IEC 320 C14
Pins Number: 3;
Mounting Type: Screw Type;
Mounting Size: 2.7 x 2 x 2.1cm / 1.1" x 0.8" x 0.83" (L*W*T)
Mounting Screw Pitch: 4cm / 1.6";
Overall Size: 5 x 2.2 x 2.7cm / 2" x 0.9" x 1.1" (L*W*T)
Material: Plastic, Metal;
Color : Black, Silver Tone
IEC 320 C14 male plug, 3-pin terminals, durable material construction, long using life.
Used widely in lab equipments, fitness equipments, industrial automation equipments, etc.
Note: Screws are not included here.

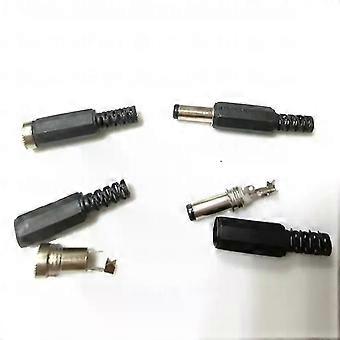

type 6 /type 7 :
_x000D_
plug size :5.5mmx 2.1mm
_x000D_
_x000D_
Inside diameter: 2.1mm
_x000D_
_x000D_
Outside diameter: 5.5mm
_x000D_
_x000D_
Male Plug shaft length: approx. 9mm
_x000D_
_x000D_
Male plug overall length: approx. 45mm
_x000D_
_x000D_
Female plug overall length: approx. 40mm
_x000D_
_x000D_
Matching pair DC Female + Male 2.1mm x 5.5mm Plug & Socket.
_x000D_
_x000D_
Ideal for DC plug + socket repairs and DIY projects
_x000D_
_x000D_
_x000D_
-
