説明

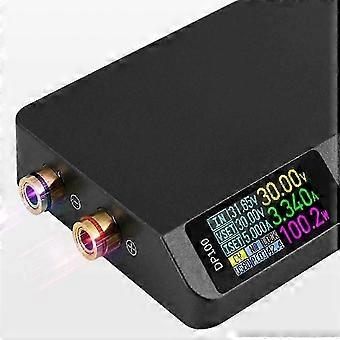

1. Rich Display, Using 0.96-Inch 160*80 High-Definition Ips Screen, More Detailed Display Content Customized Mold, Humanized Angle Design Of Display And Control Panel, 50 Golden Viewing Angle, Convenient Observation
2. Support Qc/Pd Fast Charging Protocol, Various Fast Charging Heads And Power Bank Inputs, Use Type-C To Dc Head, And Can Also Support Power Adapter Inputs
3. Continuously Adjustable, High Resolution Output
4. Excellent Ripple Performance, Providing Highly Reliable Voltage Output With No Overshoot In Output Voltage, Supporting Power Supply For Sensitive Equipment.
5. High Efficiency Output, Low Heat Generation, At 100w Full Load Output, The Efficiency Is As High As 97%
Description:1. Input voltage: DC5.0~32V, 100mA~5A (supports PD and QC fast charging protocols)
2.4.0mm banana head interface: 0~30V, 0~5A, 100W (Max)
3.USB-A interface (USBH mode): 5V/1A (input more than the 5.5V/1A)
4. Voltage setting resolution: 10mV
5. Current setting resolution: 1mA
6. Voltage setting accuracy: 0.1%5mV
7. Readback value resolution input voltage: 0.01V
8. Readback value resolution output voltage: 0.01V
9. Readback value resolution output current: 0.001A
10. Readback value accuracy input voltage: 0.2%10mV
11. Readback value accuracy output voltage: 0.1%10mV
12. Readback value accuracy output current: 0.1%5mA
13. Load regulation voltage: 0.05%+5mV
14. Load regulation current: 0.1%3mA
15.Power supply regulation voltage: 0.05%+5mV
16.Power supply regulation current: 0.1%3mA
17. Ripple and noise voltage: 2mVrms, 10mVp-p
18. Ripple and noise current: 1mArms, 3mAp-p
Material: ABS
colour: As Shown
Package Contents:
1 x CNC Power Manager
Note:
Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Will Not Affect The Use
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
-
Fruugo ID:
361616893-786036679
-
EAN:
8675422600996
製品安全情報
以下に概説するこの製品に固有の製品安全性情報を参照してください。
以下の情報は、この製品を販売する独立したサードパーティ小売業者によって提供されています。
製品安全ラベル
安全上の警告:
Please note that the product is safe under normal use conditions. However, improper use may lead to hazards such as damage, injury or other safety risks. Please read and follow the instructions carefully.This product complies with EU safety standards. However, for your safety, if any abnormality (such as strange smell, overheating, loose parts, etc.) is found during use, please stop using it immediately.In accordance with the EU General Product Safety Regulation, we remind you that this product is only suitable for [specific applicable people / scenarios]. Use in non - specified people / scenarios may bring potential safety hazards.
