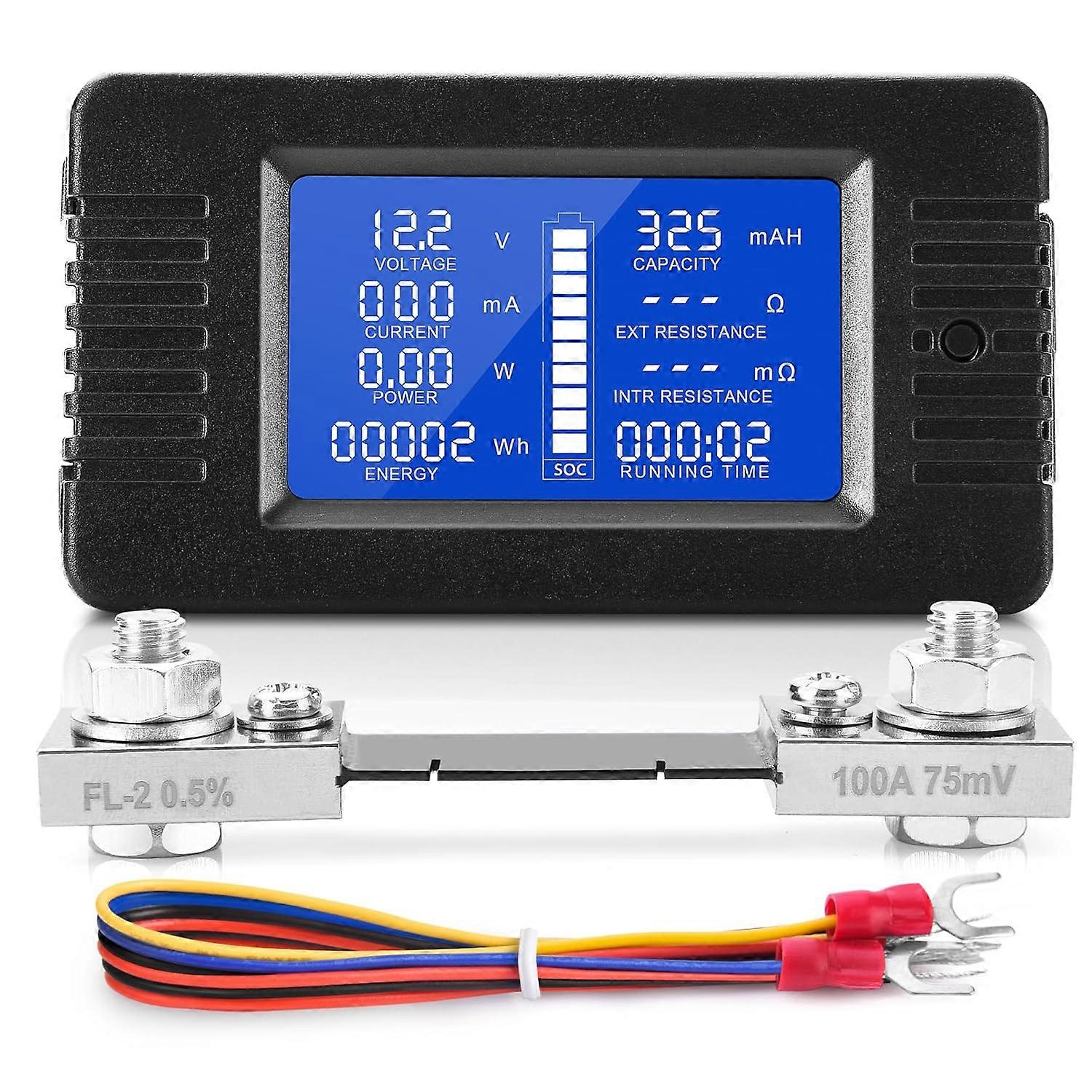

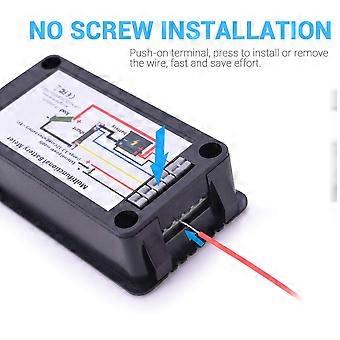

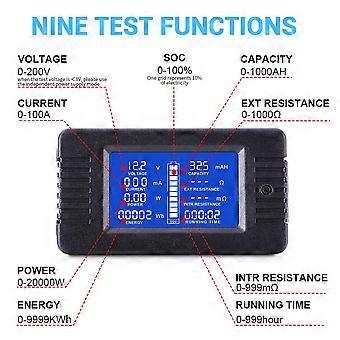

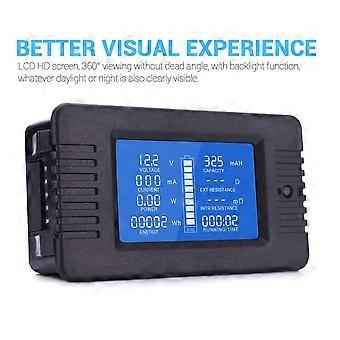

9 Measurement Functions - One interface displays 9 kinds of measurement parameters at the same time, including voltage (0-200V), current (0-100A), power (0-20000W), impedance (0-1000Ω) and internal resistance(0-999mΩ), capacity(0-1000AH), SOC, power consumption (0-999mΩ) -9999 kWh) and run time (0-999 h) BETTER VIEW EXPERIENCE - HD LCD screen, 360° view without blind spot, with backlight, easy to see day and night NO SCREW INSTALLATION - With the installation design of the plug-in terminal, it is easy and convenient to install and remove the wires without the screws Precise Measurement - High precision chip control, efficient and stable operation, safe and reliable welding process, measurement accuracy reaches 1% Wide Application - Widely used in automotive, solar system, industrial production line manufacturing The HD LCD screen combined with backlight makes it easy to read the displayed data and gives you an excellent viewing experience. High precision chip control, efficient and stable internal operation, accurate measurement, measurement accuracy up to 1%. Clip-on terminal, press to install or remove the cable quickly and effortlessly. Widely used in automotive industry, solar industry, industrial production line, etc. Note: 1. The wiring sequence cannot be incorrect. 2. This meter is only suitable for indoor use. 3. The applied load shall not exceed the rated power or rated current. 4. Press the function button with a pointing tool to avoid accidental contact. 5. The current is set according to the specifications of the shunt. Package includes: 1 x DC Battery Monitor 1 x 100A shunt 5 x Wiring Specifications: Power: measuring range: 0-20000W. Voltage: measuring range: 0-200V (if the test voltage is <8V, please use the independent power mode). Current: Measuring range: 0-100A Impedance: Measuring range: 0-1000Ω Internal resistance: measuring range: 0-999 mΩv Capacity: measuring range: 0-1000 Ah SOC: Discharge energy is displayed via battery icon, a total of 10 grids with 10% energy per grid Energy consumption: measuring range: 0-9999 kWh (note: 1 kWh = 0.001 kWh = 0.001 kilowatt) Working time: measuring range: 0-999 hours (without load, time does not accumulate) Measurement accuracy: 1%
