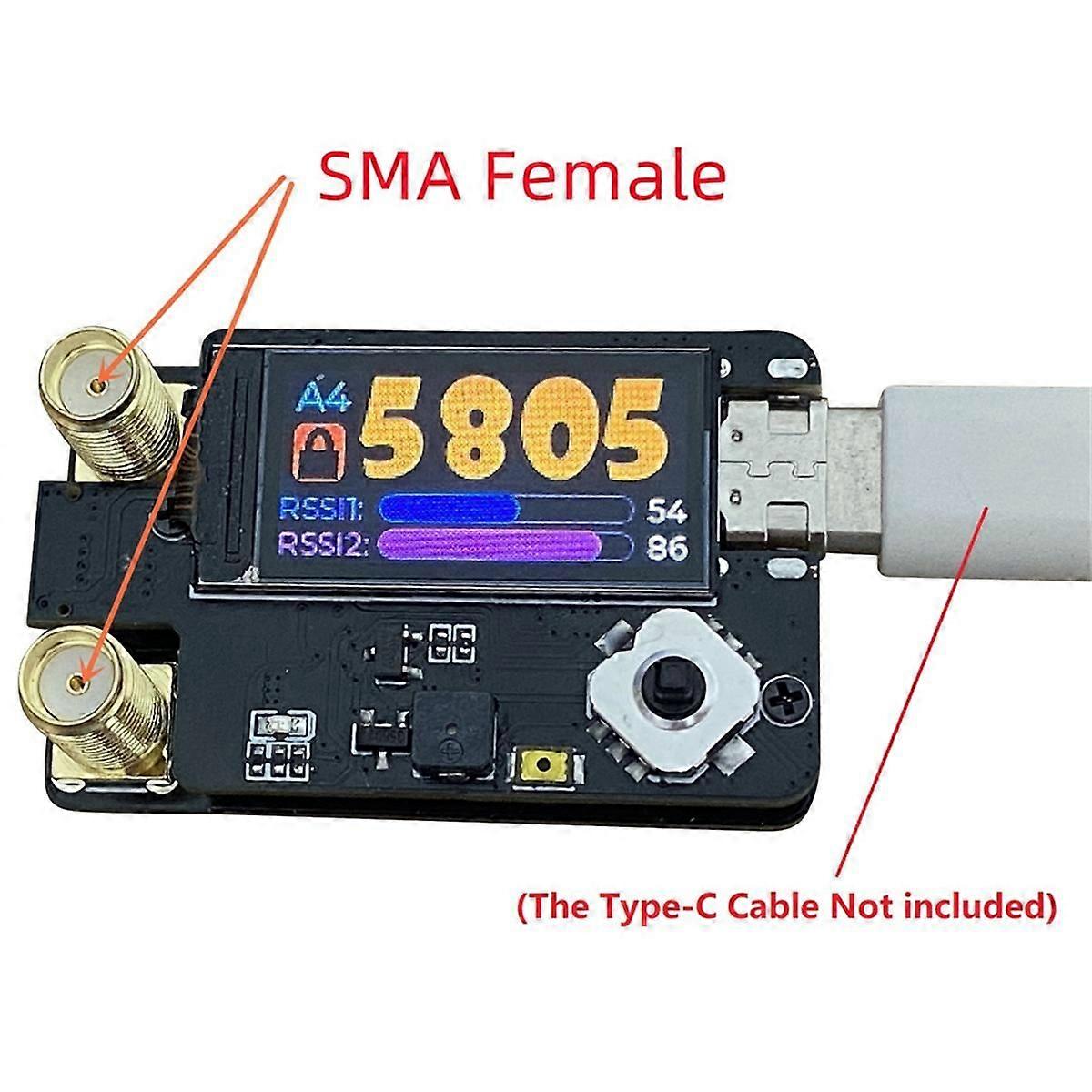

ESP32 RX5808 5.8G PLUS Dual Antenna Receiver Module for /Fatshark / V1 V2 FPV Drone Glasses,RP SMA Female

¥8,490
+ 配送料¥499

ESP32 RX5808 5.8G PLUS Dual Antenna Receiver Module for /Fatshark / V1 V2 FPV Drone Glasses,RP SMA Female

  • ブランド: Unbranded

ESP32 RX5808 5.8G PLUS Dual Antenna Receiver Module for /Fatshark / V1 V2 FPV Drone Glasses,RP SMA Female

  • ブランド: Unbranded
希望小売価格: ¥10,190
価格: ¥8,490
得する金額: ¥1,700 (16%)
販売元:
¥8,490
+ 配送料¥499

在庫あり

以下の支払い方法を利用することができます

説明

1. Main interface long press OK key to lock/unlock the manual channel, short press to enter the menu; unlocked case, press _ up, down, left and right to adjust the frequency 2.The menu interface is divided into three pieces of content:Scan, Settings, About. Press up and down to switch menu options, OK to enter -menu, left button to return to the main interface 3.Scan menu has three subcontents. Graph Scan displays the signal strength of frequency 5300-5900 MHz. Table scan display will chart channel signal strength by different colors, of the scan, frequency switch to the most current channel with the best signal strength, and displayed in the upper right corner. Calibration is used to calibrate the rssi. Failure to turn on the map transmission will cause the calibration to fail, and success will save the result. 4. Settings interface can set the display backlight intensity, power-on animation, whether the buzzer is on. 5.Firmware can be upgraded through TYPE-C USB interface Product Specifications: Adaptation: for Fatshark Dominator V1, V2, V3, HD1, , HD3, HDO, HDO2 FPV Glasses for 04L,04X FPV Glasses for V1 V2 FPV Glasses Hardware: ESP32 microcontroller + 0.96 inch TFTLCD + 5-way Pushbutton + RF homologation-98dbm receiver module + buzzer Interface: LVGL based bilingual interface Frequency: 5.8G 48 frequencies (A,B,E,F,R,L) Power supply: 5V@450mA Weight: 22.5g Dimensions:L42.4mmxW25.8mmxH20.5mm Upgrade points: 1. Smaller size, easier to install 2. Support USB direct firmware upgrade NOTE: Cables in pictures are not included Specifications: Inner pin Colour:Black Material:PCB+Electronic Components Package Contents: 1x ESP32 RX5808 5.8G PLUS Dual Antenna Receiver Module Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
  • Fruugo ID: 303985126-681216136
  • EAN: 4712067057366
