説明
1.The PCB adopts high-end 8-layer 2oZ thickened copper sheet, with stronger overcurrent capacity and good heat dissipation.
2.The M0S adopts 40V high current withstand mos, with long service life and strong load carrying capacity.
3.Adopt industrial grade LD0, which is resistant to high temperature.
4.Adopt high-quality capacitors from Japan, with strong filtering performance
Recommended pairing
Motor:2004-2306
Blade:D90 five-blade paddle - T5146 three-blade paddle
Flight control parameters:
CPU:STM32F722RET6
1MU:1CM42688
OSD:AT7456E
Barometer:integrated
:16M
BEC:5V/3A
BEC:10V/2.5A
LED:adjustable ED lamp
Sensor:built-in current sensor
Firmware version:HAKRCF7220D
Receiver:ELRS/ ,// Futaba/,/DSMX:DSM2
Electrical adjustment parameters:
Firmware version: AT.4 G Multi329.Hex
Protocol support:PWM, 0 neshot125, 0 neshot42, Multi shot, Dshot150,Dshot300,Dshot600
Input voltage:2S-6 S
M0S model:8010
Continuous current:50A
current:60A
Colour:As Shown
Material:pcb
Size:40x30mm (20mm-20mm mounting hole)

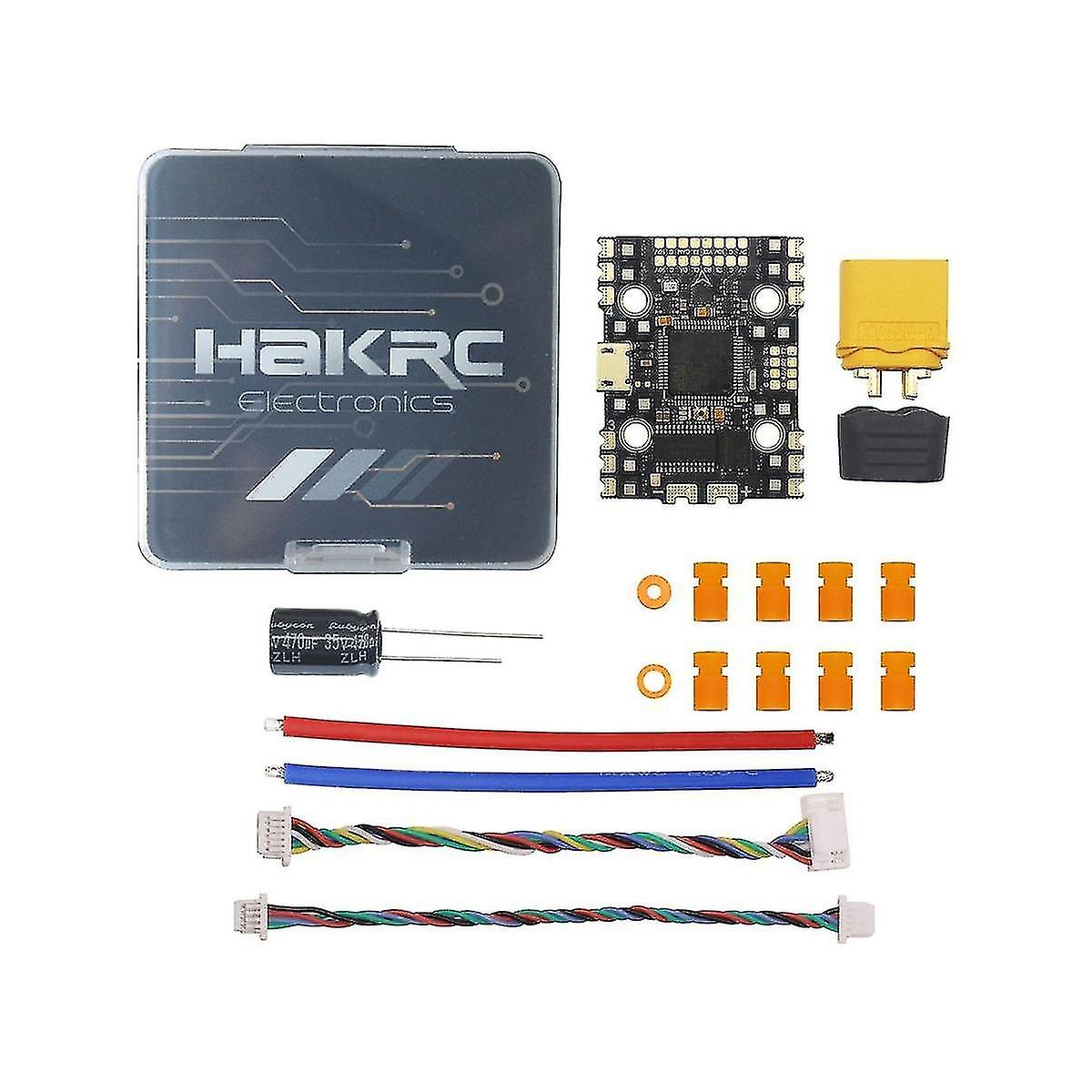

Package Contents:
1 * RC Car Main board
2 * RC Car Male accessory
8 * RC Car Shock absorbing ball
2 * RC Car Silicone wire
2 * RC Car Harness
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
-
