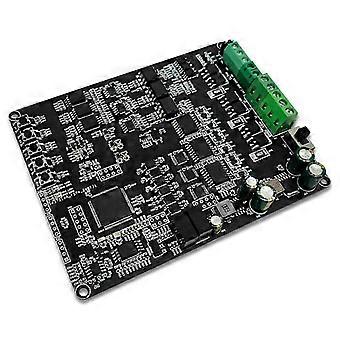

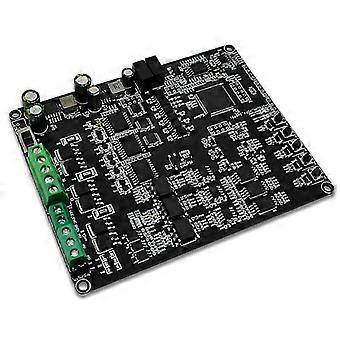

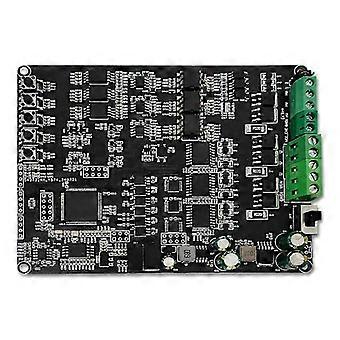

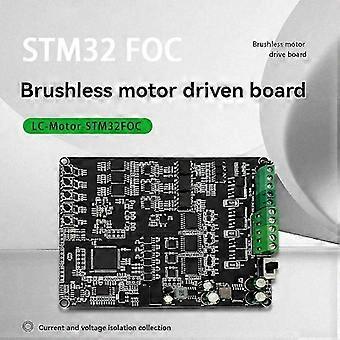

Welcome to the store! Utilizes STM32F103VET6 as the main control MCU. Employs PWM signal isolation drive, logic circuit with short-circuit protection for upper and lower tubes. A 3-way discrete high and low side gate driver IR2110 and 6 NMOS tubes form the BLDC drive circuit, with Hall encoder isolation circuit and hardware overcurrent protection circuit with fast response. Can be used to control smooth and high-precision operation of Hall sensor BLDC brushless motor within 3000RPM 10A. Reserves bus voltage isolation detection, thermal protection detection, three-phase back electromotive force isolation detection, three-phase current isolation detection circuit to facilitate secondary development. Uses STM32F103VET6 Arm 32-bit -M3 CPU. Uses 3-way IR2110STRPBF gate driver, PWM isolation circuit, short-circuit prevention logic circuit, and 6 NMOS tubes to form the BLDC drive part. Supports 3000RPM brushless motor with Hall encoder as standard. Supports maximum load current as standard: 10A, exceeding 10A will automatically trigger hardware short-circuit protection. Power supply voltage: DC12-40V; Built-in 5V and 3.3V isolated power output. Color: Black Material: PCB Package Contents: 1 x Brushless Motor Control Driver Board Only the above package content, other products are not included.
