説明
Clear and smooth video browsing; intelligent transmission giving full play to capabilities of the network
Online firmware upgrade, and synchronous updating of the functions and experience
Two-way voice intercom supported; echo eliminated; noise suppressed
Compatible with Android; remote real-time monitoring supported with the IOS intelligent terminal
2-megapixel high resolution (1920X1080P) for clear picture quality
Dual-source lighting for night vision (night vision distance = 7 m) comprising infrared lamp / white-light source; color images available for night vision

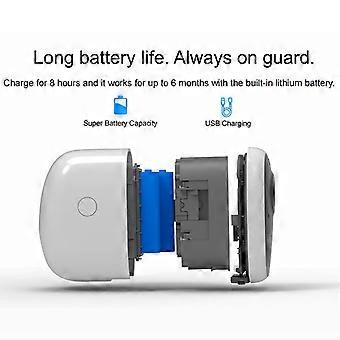

The built-in rechargeable lithium battery with long battery life functions for up to 6 months under normal circumstances and can stand by for 12 months
2.4G Wi-Fi supported (IEEE802.11b/g/n)
The image automatically flips with the installation direction of the device (G-SENSOR)
Cloud storage, Mini SD card (up to 128GB) and mobile phone video recording supported
QR code intelligent connection and network allocation supported
Supporting human contour detection, activity zone, intelligent push and pet snapshot
IP65 dustproof and waterproof design for convenient installation; bracket with 1/4 universal screw and magnetic bracket supported
Specifications:
Master Processor
SOC
ARM
Image Sensor
Sensor
1/3" color CMOS Sensor
Lens
M12, f: 3.3mm, F2.0, 2-megapixel
Visual Angle
H (horizontal) 95 degrees; V (vertical) 55 degrees; D (diagonal) 110 degrees
Minimum Illumination
0.01 Lux
Audio
Input/Output
Two-way voice intercom available (built-in microphone and speaker)
Audio Compressing Method
AAC
Video
Video Compressing Method
H.264/H.265
Lighting Frequency
50Hz, 60Hz
Image Frame Rate
15 fps
Maximum Image Resolution
2560*1440
Light Source for Night Vision
Mid-power infrared lamp (850nM in wavelength) / dual-source white-light source with an irradiation distance of 7m
Network
Wireless Network
2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna
Protocols Supported
TCP/IP, UDP/IP, DHCP, RTMP, MUTP
IP Address Supported
Dynamic IP address supported
AI
Intelligent Features
Human contour detection, activity zone,intelligent push, pet snapshot
Alarm Methods
Alarm Notification
Alarm push by mobile APP,white light flashing and alarm sound
Wake-up
Wake-up Method
PIR body induction wake-up, and remote positive wake-up
Video Recording
Recording Method
Alarm triggered recording, and manual recording
Video Storage
Cloud storage, local Mini SD card, and mobile phone memory
Indicator Lamps
LED Indicator
RGB tri-color lamp indicating the status of power/network signal/functionality
Battery
Capacity
5200mAh
Removability
Unremovable
Battery Life
6 months (provided that 20 10s videos are recorded per day)
Standby Time
1 year
Charging Voltage
DV 5V+-5%/1.5A
Charge Time
Within 8 hours
Protection Method
IP65 resistance to dust and water; over-current/over-discharge/over-charge/short circuit/charging protection at high & low temperatures
Power Consumption
Standby Power Consumption
1.68mW (4V 0.42mA)
Power Consumption of Daytime Operation
1W (3.8V 264mA)
Power Consumption of Operation at Night
2.23W (3.8V 588mA)
Interfaces
Power Supply
1 MICRO USB interface
SD Card
1 Mini SD card (up to 128GB supported)
Keys
1 reboot key and 1 on/off key
Installation Method
Installation Method
Magnet and 1/4 universal screw holes
Environment
Dustproof and Waterproof
IP65
Operating Environment
-10 ~45℃ / 0%~80% (no condensation)
Storage Environment
-20 ~60℃ / 0%~90% (no condensation)
Specifications
Size (LxWxH)
84mm*62mm*92.5mm (with bracket excluded)
Net Weight of Bare Machine
Approx. 338g
Finished Weight
Approx. 570g
Material + Process
ABS + PC
Certifications
Certificate
RoHS, CE, FCC, WEEE, MSDS, UN38.3
Package included:1 x Surveillance Camera (with 16GB Memory Card)1 x Bracket1 x Charging Cable1 x English User Manual
-
