Adopting ICL8038 and high-speed operational amplifier, with higher accuracy;It can output sine/triangular/square wave/forward and reverse sawtooth waveforms;_x000D_
Frequency range: 5Hz~400kHz; Duty cycle range: 2~95% (adjustable);_x000D_
Support dual power amplifiers without blocking capacitors, ensuring high and low frequency signal distortion;_x000D_
Adjustable frequency and amplitude;Frequency adjustment has coarse and fine tuning functions;All are through-hole components, easy to install._x000D_
Different batches may have different appearance, which does not affect use.Depending on the batch, the colors of electronic components/knobs, etc. may be different, which does not affect use._x000D_
_x000D_
Parameter:_x000D_
Power supply voltage: 12V~15V_x000D_
Frequency range: 5Hz~400KHz (adjustable)_x000D_
Duty cycle range: 2~95% (adjustable)_x000D_
Low distortion sine wave: 1%_x000D_
Low temperature drift: 50ppm/ C_x000D_
Output triangular wave linearity: 0.1%_x000D_
DC bias range: -7.5V~7.5V_x000D_
Output amplitude range: 0.1V~11VPP (working voltage 12V)_x000D_
Interface Description:_x000D_

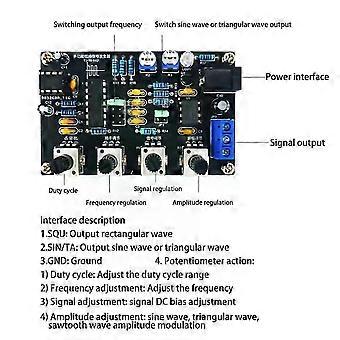

1. SQU: Output rectangular wave_x000D_
2. SIN/TA: Output sine wave or triangular wave_x000D_
3. GND: Grounding_x000D_
4. Potentiometer function:_x000D_
1) Duty cycle: Adjusting the duty cycle range_x000D_
2) Frequency regulation: Adjusting the frequency_x000D_
3) Signal adjustment: Signal DC bias adjustment_x000D_
4) Amplitude adjustment: sine wave, triangular wave, sawtooth wave amplitude modulation_x000D_
Pre purchase instructions:_x000D_
This kit (loose parts) is not a finished product and is only used for scientific research and experiments._x000D_
This kit is not suitable for customers who require finished products._x000D_
Assembling and debugging the kit (loose parts) requires corresponding knowledge and skills._x000D_
Colour:Black_x000D_
Material:FR4+ electronic components_x000D_
_x000D_
Package Contents:_x000D_
1 x signal generator DIY kit without shell_x000D_
_x000D_
Only the above package content, other products are not included._x000D_
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
