Mateksys R24-P6V ExpressLRS ELRS 2.4GHz 6CH PWM Vario Receiver Dual Antenna for RC Drone Airplane

¥6,990
+ 配送料¥1,099

Mateksys R24-P6V ExpressLRS ELRS 2.4GHz 6CH PWM Vario Receiver Dual Antenna for RC Drone Airplane

  • ブランド: Unbranded

Mateksys R24-P6V ExpressLRS ELRS 2.4GHz 6CH PWM Vario Receiver Dual Antenna for RC Drone Airplane

  • ブランド: Unbranded
希望小売価格: ¥9,590
価格: ¥6,990
得する金額: ¥2,600 (27%)
販売元:
¥6,990
+ 配送料¥1,099

在庫あり

以下の支払い方法を利用することができます

説明

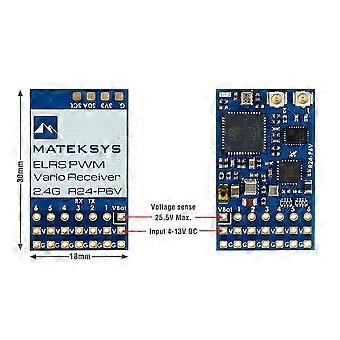

Mateksys R24-P6V ExpressLRS ELRS 2.4GHz PWM Vario Receiver for FPV Racing Drone Specifications:ESP32-PICO-D4, SX1281, ExpressLRS Firmware PA/LNA: SE2431L RF Frequency: 2.4GHz ISM Telemetry power: 22.5dbm (180mW) Diversity: Antenna-switching, default ANT1 Barometer SPL06-001 (Vario) Receiver output: 6x PWM CH VBAT voltage sense: 0~25.5V Antenna connector: IPEX MHF-1 Power supply: 4-13V DC @ “V” Pad Power dissipation: 60mA~80mA@5V IN PCB size: 30mm x 18mm Weight: 4g w/ antenna Firmwares ExpressLRS Receiver has ExpressLRS 3.3.2 preloaded with binding phrase “123456”, the Receiver will never enter binding mode if using the traditional binding procedure. You need to reflash it with your binding phrase OR connect it to your PC/phone via WiFi and set your binding phrase in WebUI. Tips Full Resolution Switch Configuration Modes Powering receiver with Reverse Voltage will damage the regulator chip. DOUBLE CHECK the power wires connected to the receiver. Transmitter fw version should be EdgeTX 2.7.1/OpenTX 2.3.15 or newer Flashing via Wifi - Power on receiver. Receiver’s LED(Red) will blink slow at first, and after 30s, it should blink fast indicating it’s on Wifi Hotspot Mode. -Wifi SSID “ExpressLRS RX”, Password “expresslrs” Flashing via UART 1.Disconnect ESC and servos from receiver first. 2.Wire the receiver into the USB-TTL adapter, with TX(PWM 2 pin) on receiver connected to the Rx on the USB-TTL, and RX(PWM 3 pin) on receiver connected to the Tx of the USB-TTL. Wire 5V and GND of the USB-TTL to “V” and GND of the Receiver. 3.Press the boot button while powering on the receiver, then release – the Red LED on receiver should now be solid on. 4.In configurator, Select the target Generic ESP32 PWM Vario 2.4Ghz RX, or RadioMaster ER6-GV and “UART” for Flashing Method, set your bind phrase and Firmware Options , Check “erase before flash” and “Force FLash “. Package Included: 1x ELRS-R24-P6V 2x IPEX MHF1 Antennas. 15cm Dupont 2.54 pins (Board is shipped unsoldered)
  • Fruugo ID: 334028425-736259976
  • EAN: 3722566711981

製品安全情報

以下に概説するこの製品に固有の製品安全性情報を参照してください。

以下の情報は、この製品を販売する独立したサードパーティ小売業者によって提供されています。

製品安全ラベル

CE Mark
安全上の警告: Not suitable for children under 14 years
