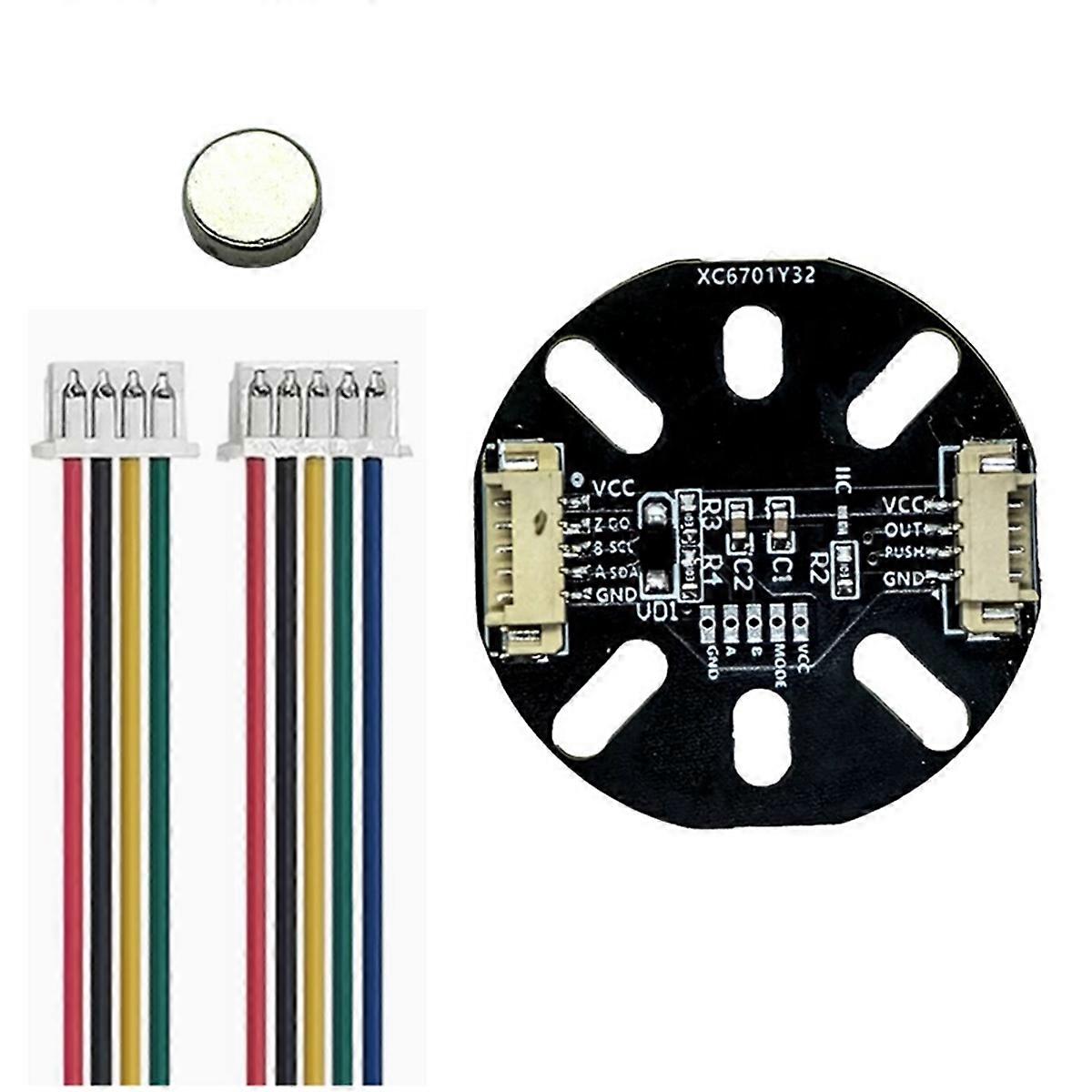

The MT6701 is a magnetic angle encoder based on the differential Hall effect principle. The MT6701 senses the magnetic field component perpendicular to the chip . As the radially magnetized magnet rotates on the chip , the MT6701 outputs a corresponding angle signal from 0° to 360°. In addition to providing ABZ/UVW incremental output and Analog/PWM absolute angle output, the MT6701 also provides a 14-bit digital angle output via the I²C/ interface. Besides rotational angle measurement, the MT6701 also provides a "push-button" output, enabling a single-chip rotary/push-button function. Chip: MT6701CT Accuracy: IIC/: 14bit PWM: 12bit AB: 1-1024 Connector type: MX1.25-4P/5P Operating voltage (V): 3.3-5.0 Maximum rotational speed: Less than 55,000 RPM PWM output: 12bit Operating temperature (°C): -40~125°C ABZ incremental output: 1~1024 lines, programmable UVW incremental output: 1~16 poles, programmable Absolute angle resolution: 14bit System delay (constant speed): Less than 5us Communication interface: I²C/ Color: Black Material: PCB Package Contents: 1 * Magnetic Encoder 1 * Magnet 2 * cable Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
