Press the key of coding potentiometer briefly to activate the parameter to be set;The switch of parameter name and bit selection is realized by short pressing the key of coded potentiometer;After selecting the parameter name, the parameter name will be displayed in reverse blue, and the parameter to be set will be switched by rotating the encoding potentiometer;
After bit selection, the corresponding bit will be displayed in reverse blue, and parameters will be set by rotating encoder;After the setting is completed, long press the key of the encoding potentiometer for 2 seconds or more, and no key operation will automatically exit the setting;All parameters are saved automatically after exiting.
Data group function description:10 sets of data groups of M0-M9 can be saved. By default, the data group M0 can be saved. Press and hold the key of coding potentiometer for 2 seconds on any interface to quickly call up the M1/M2 data group, and the serial number of the current data group will be displayed at the interface index;
In the parameter setting interface, select the data group, and rotate the encoding potentiometer to call up the corresponding data group;
After the parameters in the data group are modified and exited, the corresponding parameters will be stored in the current data group by default.

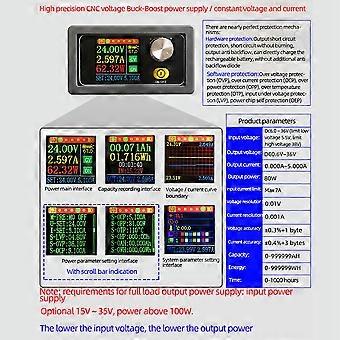

Set voltage U-SET:0.6-36V;
Set current I-SET:0-5.1A;
Input undervoltage protection LVP default: 4.8V, self setting;
Output overvoltage protection OVP default: 37V, can be set by itself;
Output over-current protection OCP default: 5.2A, can be set by yourself;
Output over protection OPP default: 81W, self setting;
Maximum operation time OHP: when the parameter is not set to 0, turn on this function. When the operation reaches the set time, the will automatically turn off the output;
Maximum capacity OAH: when the parameter is not 0, turn on this function, when the capacity reaches the set parameter, the will automatically turn off the output;
Maximum energy OWH: when the parameter is not 0, turn on this function, when the energy reaches the set parameter, the will automatically turn off the output;
OHP / OAH / OWH function can well realize timing / quantitative supply.
colour: black
Material: plastic
size: 79 * 42 * 22MM
Package Contents:
1*Buck Boost Converter
Note: output is off by default after data group switching;
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
-
ブランド:
Unbranded
-
カテゴリー:
集積回路・チップ
-
色:
black
-
Fruugo ID:
124423450-261457719
-
EAN:
4712467803020
